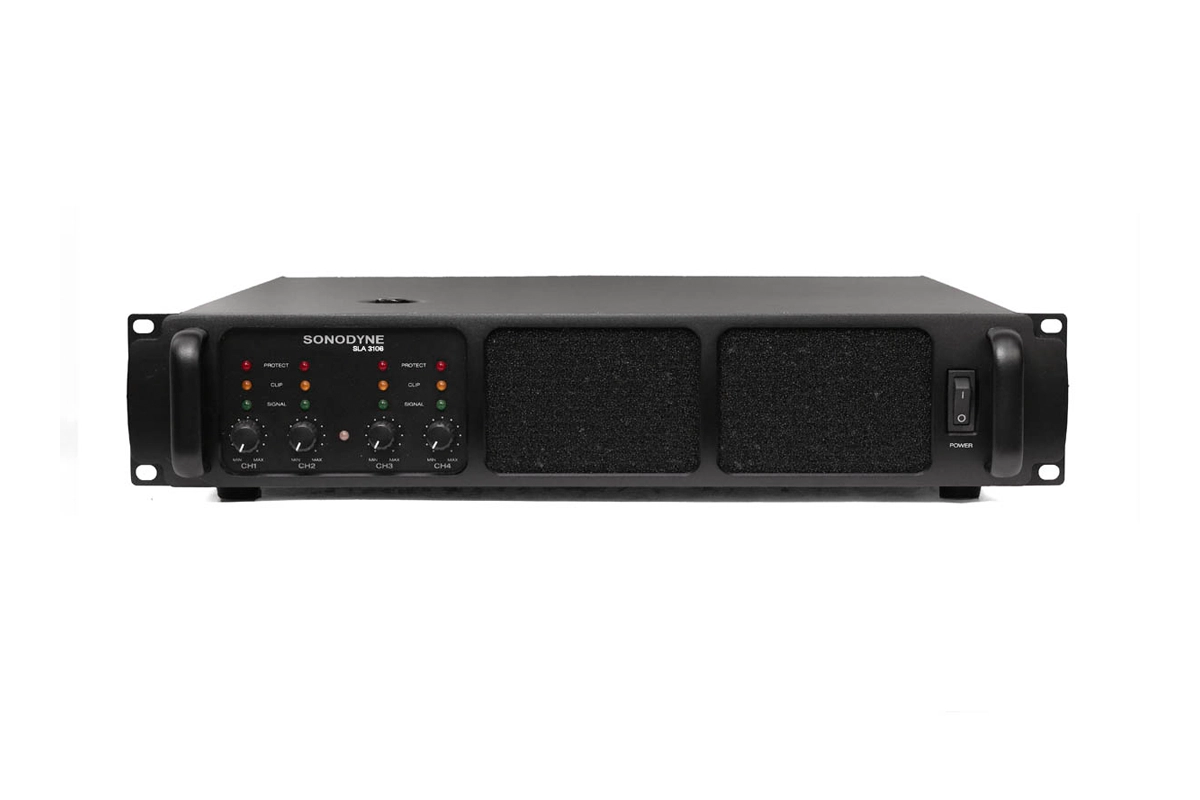

4 channel power amplifier

SLA 3106 is a 4 channel, Class H amplifier that delivers 900 watt / channel at 4 Ohm. Detailed specifications are given below

Warranty

2 Years

Dimensions

446mm×483mm×88mm

  • Soft start

  • High SNR

  • Low THD, IMD

  • Heavy-duty power supply for high dynamic power

  • Short-circuit, thermal, output DC, RF protection

  • Variable-speed twin fan back-to-front cooling

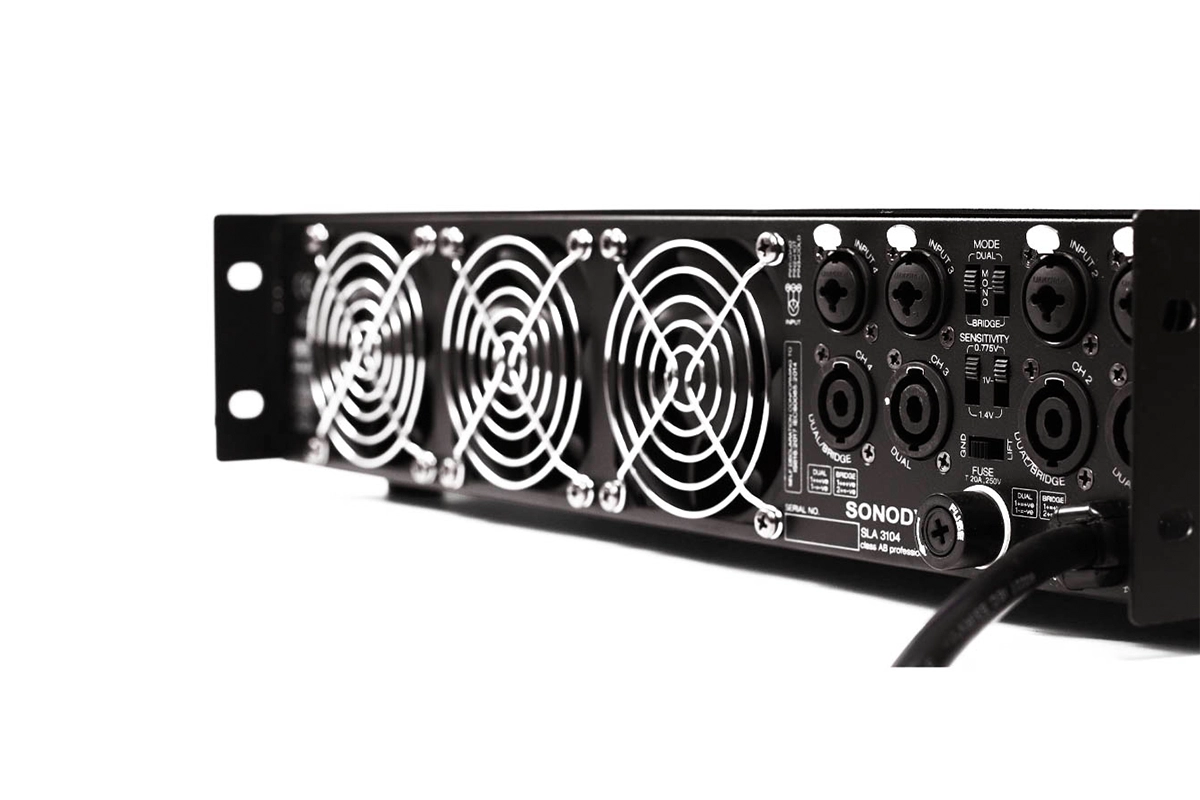

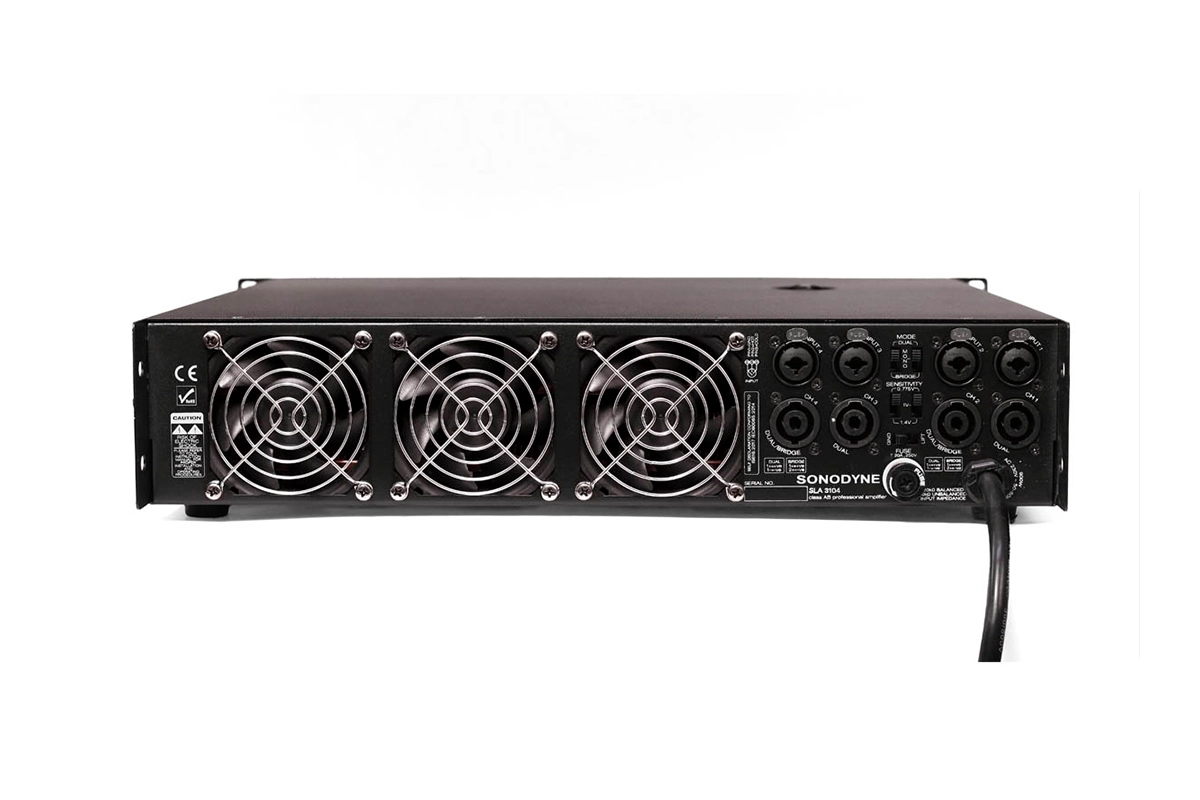

  • Twist-lock and binding post output connectors

  • LED indicators for metering, status, and operating mode

  • Variable sensitivity selector

DESCRIPTION
4 channel power amplifier
CHANNEL
4
OUTPUT POWER
8Ω: 600W 4Ω: 900W 8Ω BRIDGED: 1800W (per channel)
AMPLIFIER THD @ RATED POWER
<1%
DAMPING FACTOR
>300
SIGNAL TO NOISE RATIO
105dB (20Hz ~ 20kHz)
OUTPUT CIRCUITRY
H
FREQUENCY RESPONSE
20Hz~20kHz, ±0.5dB
INPUT CONNECTOR
XLR
OUTPUT CONNECTORS
Twist-lock connector
AMPLIFIER AND LOAD PROTECTION
Short circuit, output DC, thermal, RF protection
INDICATORS

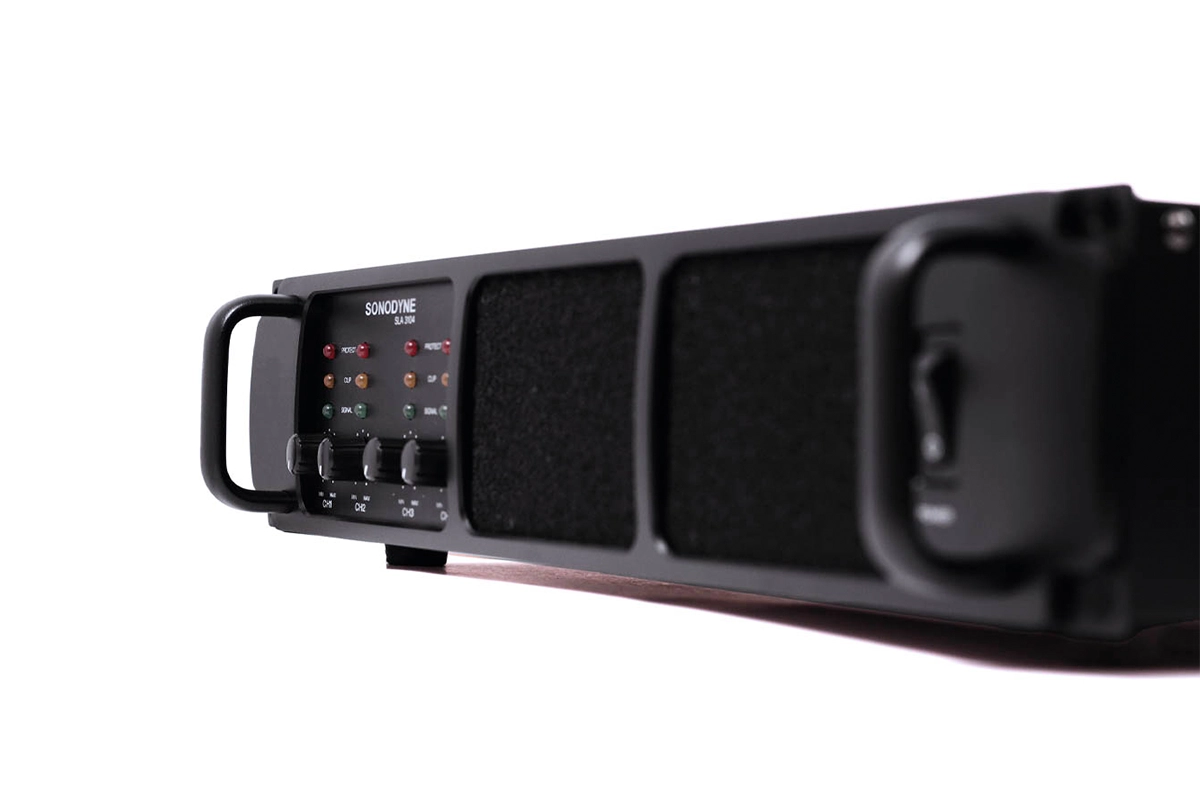

Front Panel: Clip, Protect and Signal LED indicators, 42 detent rotary vol control
INPUT POWER
1100W (as per BIS IS616:2017 IEC60065:2014/IEC62368-1)
CONTROLS
Rear: 3 position Slide switch for Mode - Dual, Mono, Bridge. 3 position Slide switch for Sensitivity – 0.775V, 1 V and 1.4V.
DIMENSIONS (WxHxD)
483mm x 88mm x 446mm
NET WEIGHT
19.2kg
AGENCY APPROVALS
CE, BIS IS616:2017 IEC60065:2014/IEC62368-1

NOTE: Due to continuous improvements, all specifications are subject to change

Powered by Sonodyne

Find YourPerfect Match

SLA 3106

SLA 3106

FREQUENCY RESPONSE

20Hz~20kHz, ±0.5dB

DAMPING FACTOR

>300

OUTPUT CIRCUITRY

H

DESCRIPTION

4 channel power amplifier

CHANNEL

4

OUTPUT POWER

8Ω: 600W 4Ω: 900W 8Ω BRIDGED: 1800W (per channel)

DIMENSIONS (WxHxD)

483mm x 88mm x 446mm

NET WEIGHT

19.2kg

SLA 3104

SLA 3104

FREQUENCY RESPONSE

20Hz~20kHz, ±0.5dB

DAMPING FACTOR

>300

OUTPUT CIRCUITRY

H

DESCRIPTION

4 channel power amplifier

CHANNEL

4

OUTPUT POWER

8Ω: 400W 4Ω: 600W 8Ω BRIDGED: 1200W (per channel)

DIMENSIONS (WxHxD)

483mm x 88mm x 446mm

NET WEIGHT

18.8kg
