Horn Loaded System
High sound pressure level upto 130dB for and extravagant cinematic experience
Home > Home Theater > Speakers > Privea > SRT 4102

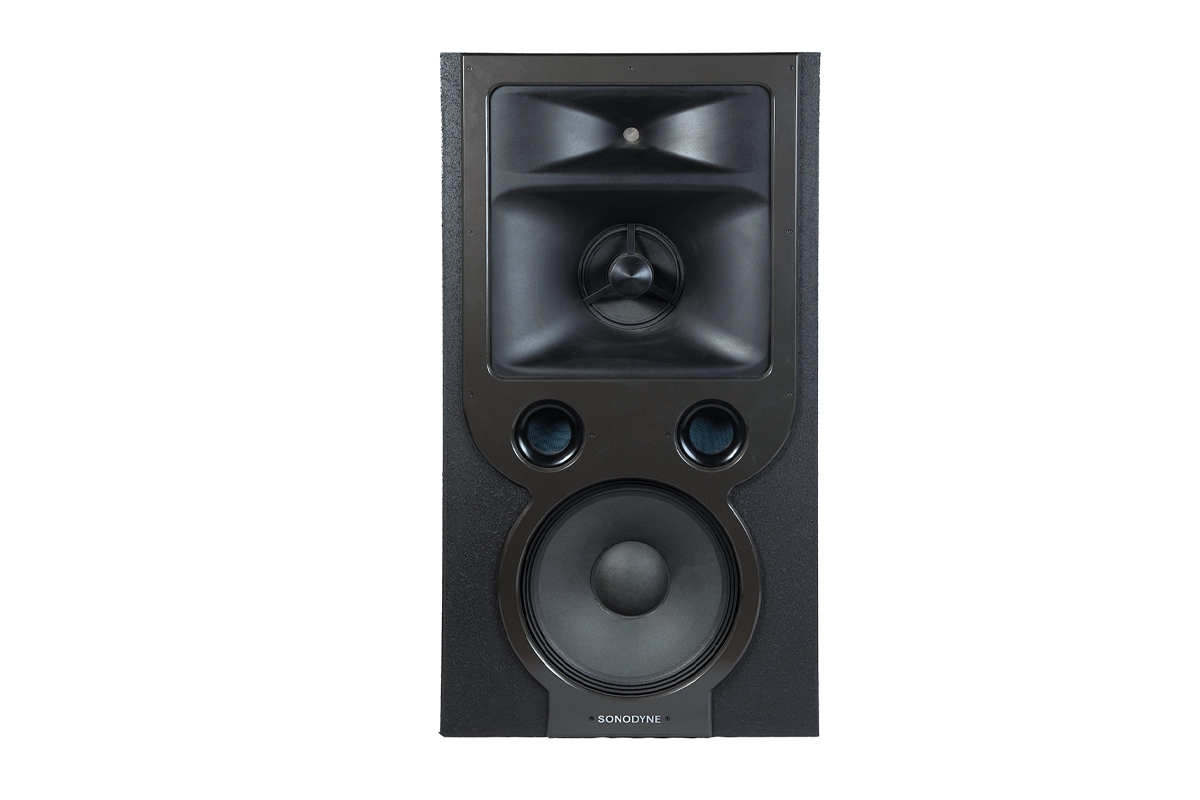

This is a shallow-profile 3 way triamped active speaker with a 1" compression driver and 6" midrange mounted on a waveguide, having dedicated flares for the HF and mid, and a 15" woofer as LF. With a beautiful tuned response it provides depth and detail for both music and movies as LCR for private theatre rooms
Warranty
2 Years
Power Output
600W
Dimensions
290mm×600mm×1100mm
Horn Loaded System
Tri-amplified
Shallow Profile
Wide Directivity
Wide Frequency Bandwidth
Complete Engineered System


High sound pressure level upto 130dB for and extravagant cinematic experience

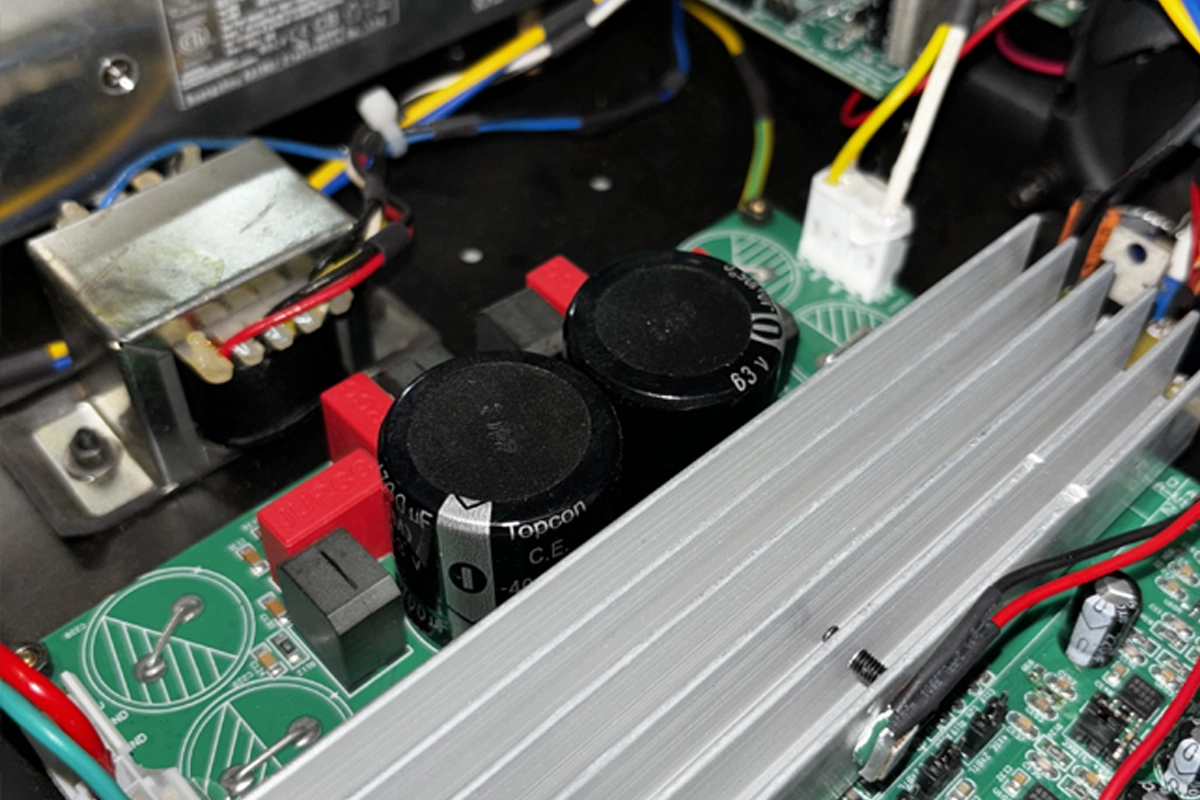

Every speaker has three amplifiers allowing for excellent dynamics and headroom

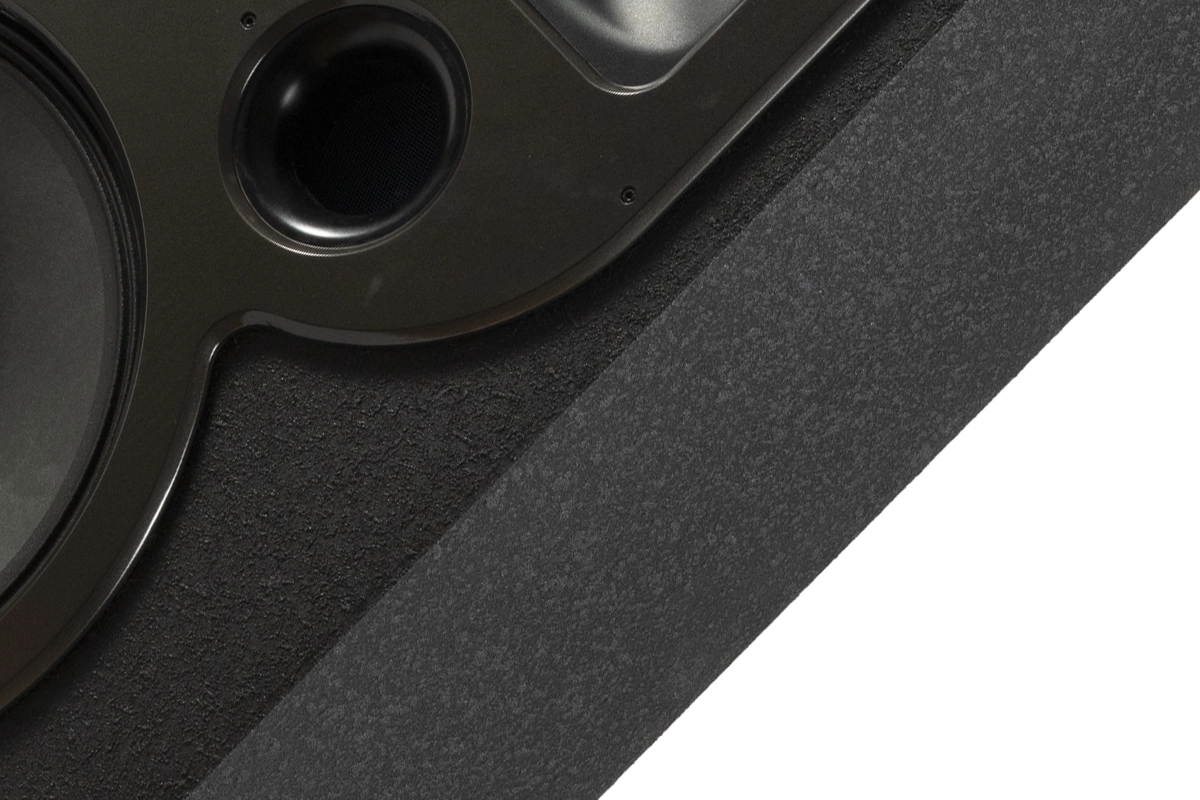

This allows for ease of installation behind screen and on wall

With inbuilt DSP with 24 bit, 96kHz processing, the time aligned drivers produce very smooth response, on and off axis

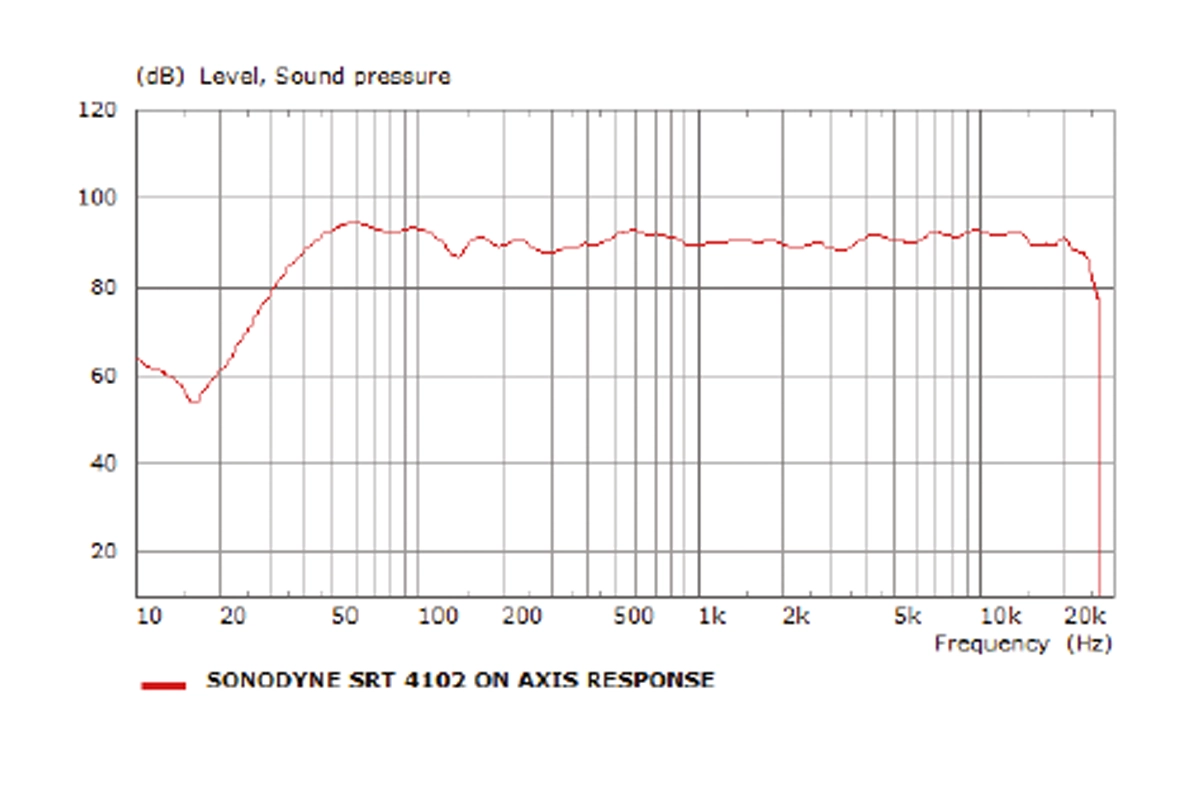

With frequency response from 40Hz to 20kHz, the sonics are full bodied and detailed

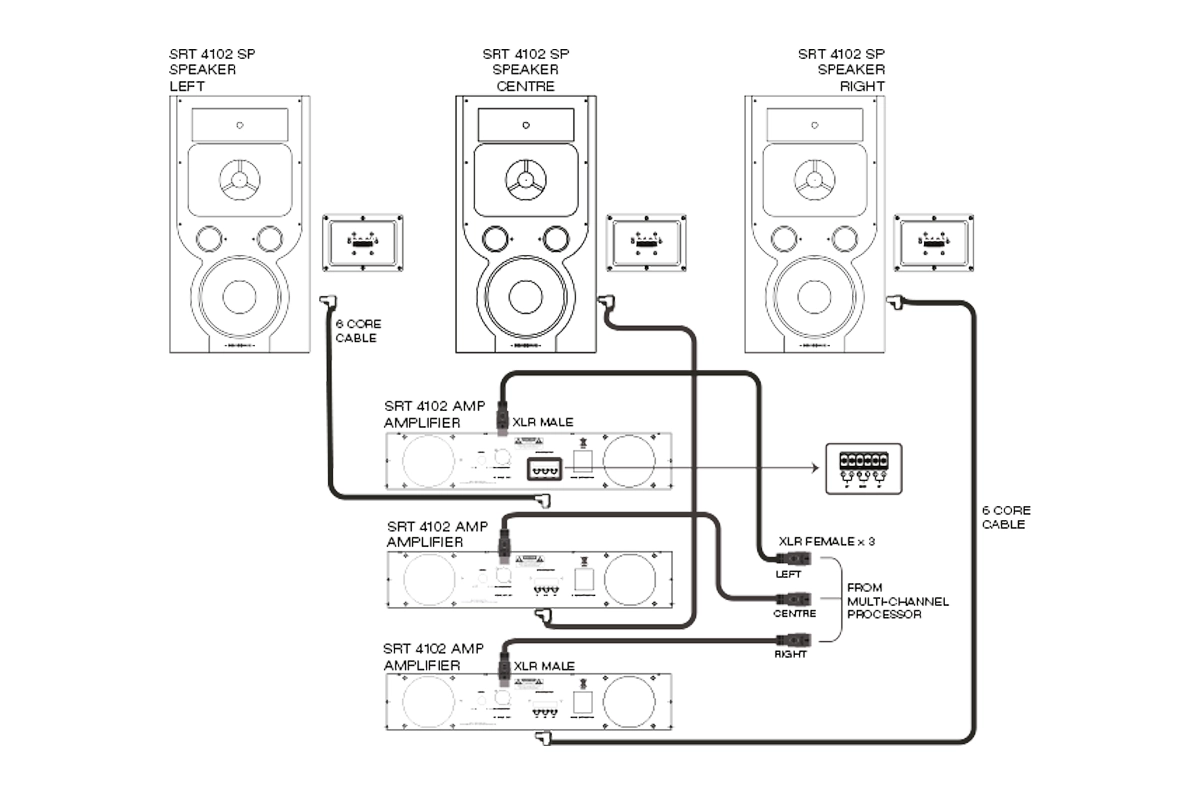

Tone matched multi-channel system for large rooms
Description
3-way tri-amped large format home theatre active speaker systems
Transducer Complements
LF: 15” woofer, 3” VC, MF: 8” mid-bass with waveguide, 2” VC, HF: 1” compression driver with waveguide, 2” VC
Enclosure Type
Bass-reflex, through twin front-firing vents
Acoustic Frequency Response
40Hz ~ 20kHz (±3dB)
Max SPL At 1m
130dB (half space)

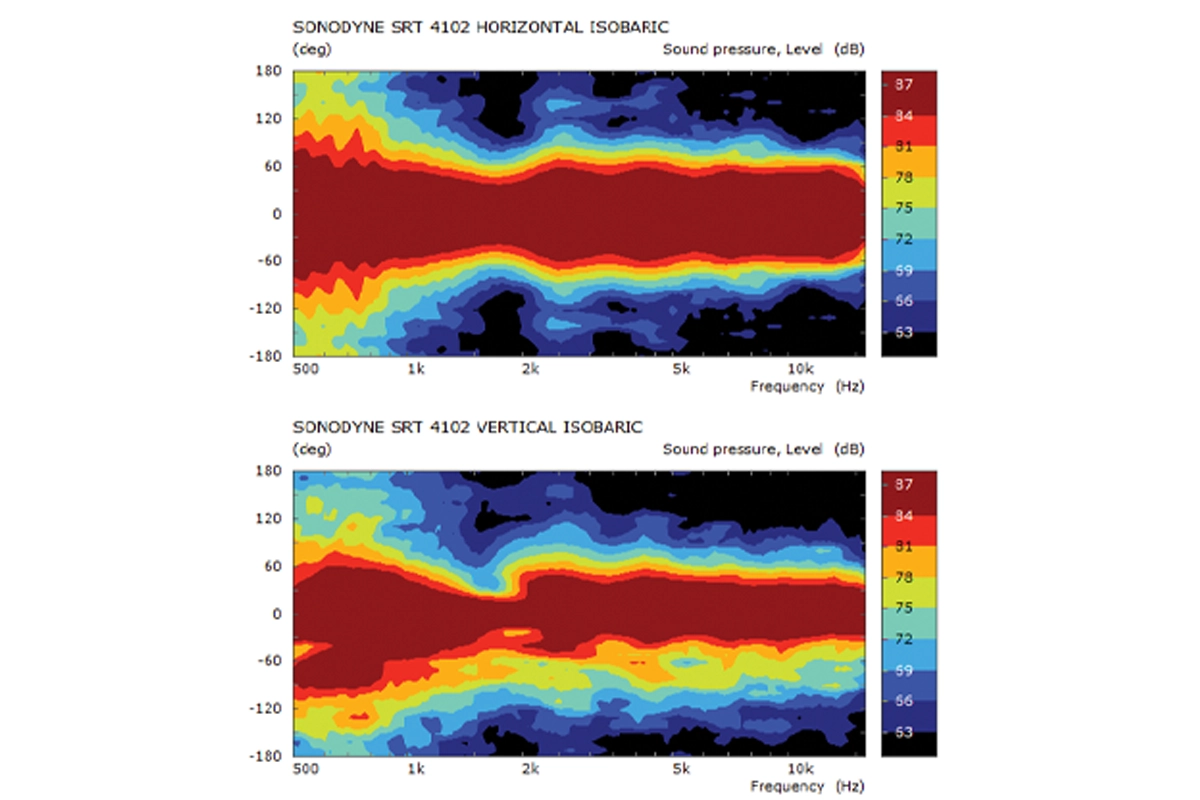

Beam Width (hxv)
H 90° x V 60° (averaged between 1 ~ 20kHz)
THD
80Hz ~ 200Hz <3%, >200Hz <1% (@95dB SPL)
Input Connector
6 pin Phoenix type connector with locking screw
Crossover Frequency
500Hz, 1.2kHz
Enclosure
MDF
Finish
Black painted
Mounting Options
Wall-mounting brackets
Dimensions (wxhxd)
600mm x 1100mm x 290mm
Net Weight
42.6kg
PRIVÉA is Sonodyne's flagship home cinema range, designed to deliver an authentic theatre-quality experience in private viewing spaces. Combining professional cinema technologies with refined engineering, PRIVÉA reproduces movies exactly as the creators intended.
Unlike conventional home theatre systems, PRIVÉA uses professional-grade horn-loaded loudspeakers, dedicated DSP-controlled amplification and precision-engineered components to deliver exceptional dynamics, clarity and cinematic realism.
Yes. PRIVÉA is specifically designed for dedicated home theatres and premium media rooms, where its calibrated performance and high output capability can be fully appreciated.
Horn-loaded speakers provide higher efficiency, lower distortion and controlled sound dispersion. This allows every seat in the room to experience consistent, powerful and highly detailed sound, even during demanding movie scenes.
The integrated Digital Signal Processing (DSP) precisely controls crossover frequencies, time alignment, equalisation and speaker protection. This ensures every loudspeaker performs optimally, delivering balanced, accurate and reliable sound.
Each speaker incorporates dedicated amplification and DSP optimisation, eliminating the compromises associated with passive crossover networks. This results in improved accuracy, better control and consistent performance across the entire system.
Absolutely. With high output capability, low distortion and professional-grade acoustic design, PRIVÉA is engineered to deliver reference-quality performance even in larger private cinema rooms.
Yes. While optimised for cinematic playback, PRIVÉA's balanced frequency response and exceptional detail make it equally capable of reproducing live concerts, music performances and high-resolution audio with remarkable fidelity.
Yes. PRIVÉA is designed as a professionally specified and calibrated home cinema solution. Every installation is tailored to the room to achieve optimum acoustic performance.
Built on over five decades of acoustic innovation, PRIVÉA represents the pinnacle of Sonodyne's engineering expertise. It combines professional cinema technologies, precision calibration and premium craftsmanship to deliver an immersive, emotionally engaging home theatre experience that remains true to the filmmaker's vision.
